Case study: Critical bridge vibrations reduced by 87% before sea trial deadline
Background
During preparation for sea trials, a vessel at one of China’s leading shipyards experienced significant bridge vibrations on a sister vessel with the same MAN B&W 6S50ME-C9.6 main engine configuration. Although this setup would not normally require an external vibration compensator, the measured vibration levels made mitigation essential before delivery.
The customer’s challenge
The need for a solution was identified less than two months before the scheduled sea trial. With the delivery schedule at risk, the shipyard required a fast, reliable and proven solution to reduce harmful bridge vibrations without delaying the newbuilding programme.
Solution: Rapid delivery of a G&O vibration compensator
G&O Compensators responded with close internal coordination, efficient planning and fast allocation of a suitable vibration compensator.
The solution included:
- Rapid technical assessment
- Allocation of a suitable compensator
- Delivery within the shipyard’s demanding deadline
- Sea trial verification under operating conditions
Result: 87% vibration reduction
During sea trials, bridge vibrations were significantly reduced.
At 94 rpm, vibration levels on the bridge decreased from 14.61 mm/s RMS to 1.88 mm/s RMS — a reduction of approximately 87%.
Impact
- Harmful bridge vibrations eliminated
- Improved crew comfort and wellbeing
- Enhanced protection of critical structures and equipment
- Shipbuilding schedule maintained without delay
- Data-verified performance during sea trial

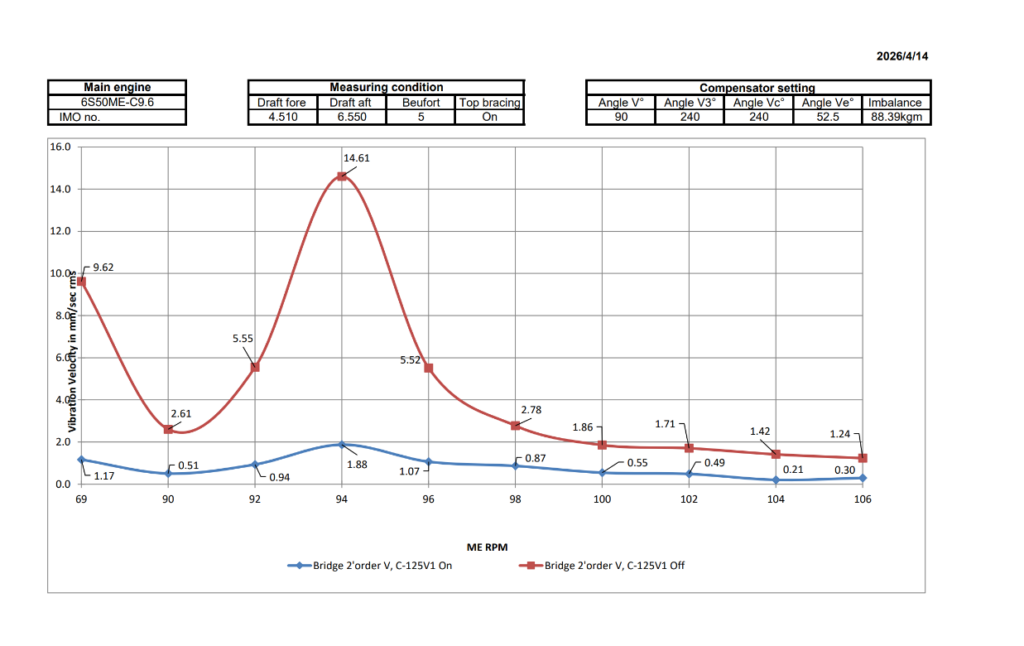

Visual evidence
The test results graph confirms a clear before/after improvement, with the compensator reducing bridge vibration levels across the measured RPM range and delivering the strongest improvement at 94 rpm.
